Troposcatter
Troposcatter systems bypass the need for satellite links in areas where infrastructure is damaged or non-existent. Troposcatter facilitates secure, reliable communication links that overcome line-of-sight challenges in complex terrain like forests, mountains and urban environments.
Rapid, reliable communication networks in disaster zones
We design and manufacture Block Upconverters (BUCs) for troposcatter communication.
Troposcatter uses high-frequency radio signals directed at specific angles over the horizon to create a ‘scatter field’ utilising the troposphere, with the refracted signals then received up to 300 miles away.
20-1000W Output Power
Man-pack and high power BUC/SSPAs.
Cutting-edge solutions for point-to-point communication
Advanced GaN technology and a patent-pending Z-combining method for superior power density and RF performance.
Compatible with all antenna systems
Reliable long-range communication for defence, disaster recovery, and emergency operations.

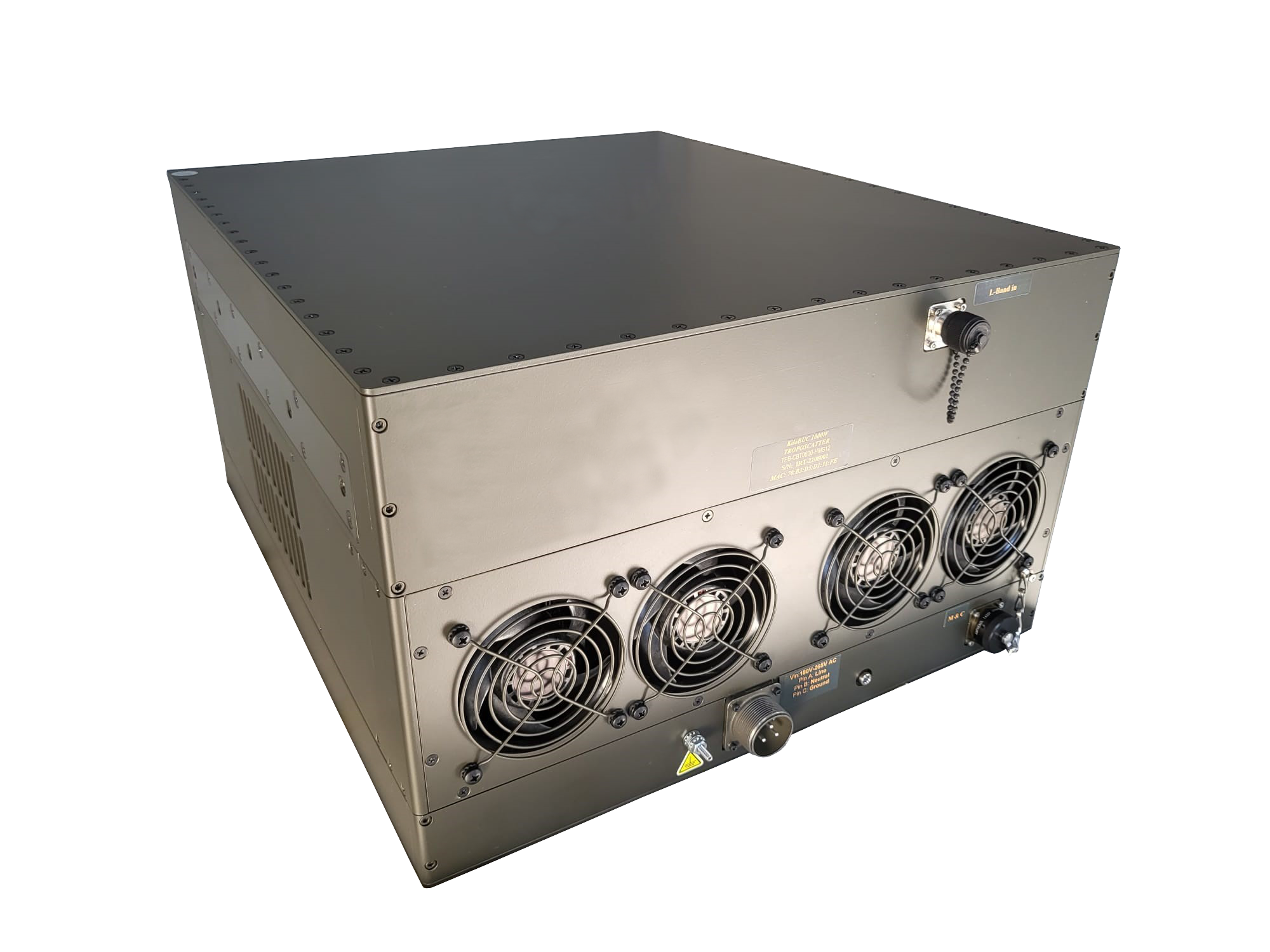

500-1000W Troposcatter BUC/SSPA
Our Troposcatter BUC / SSPA delivers up to 1000W output at just 46KG, combining advanced GaN technology and a patent-pending Z-combining method for superior power density and RF performance. Its high thermal efficiency boosts reliability, reduces system size and cost, and suits both mobile and fixed applications. Backed by a three-year warranty, it sets a new benchmark in high-power BUC/SSPA technology.
| · Extremely High Power Density— 1000W PSAT in 52x46x27cms
· RF Overdrive Protection · Input and Output True RMS Power Detection · Superior RF Performance · Phase noise 8-10dB better than IESS308/309 · Psat up to 60dBm · Spurious below –60dBc · Intuitive monitoring and control via RS232/RS485 and Ethernet (SNMP &HTTP) |
· Wide dynamic range of Gain Control
· High Linearity · Configuration via RS-232 serial console, packet protocol RS-485—User friendly HTTP based GUI and SNMP · Redundant Ready– No External Redundancy Controller Required · Status LED · Field Upgradable Software
|

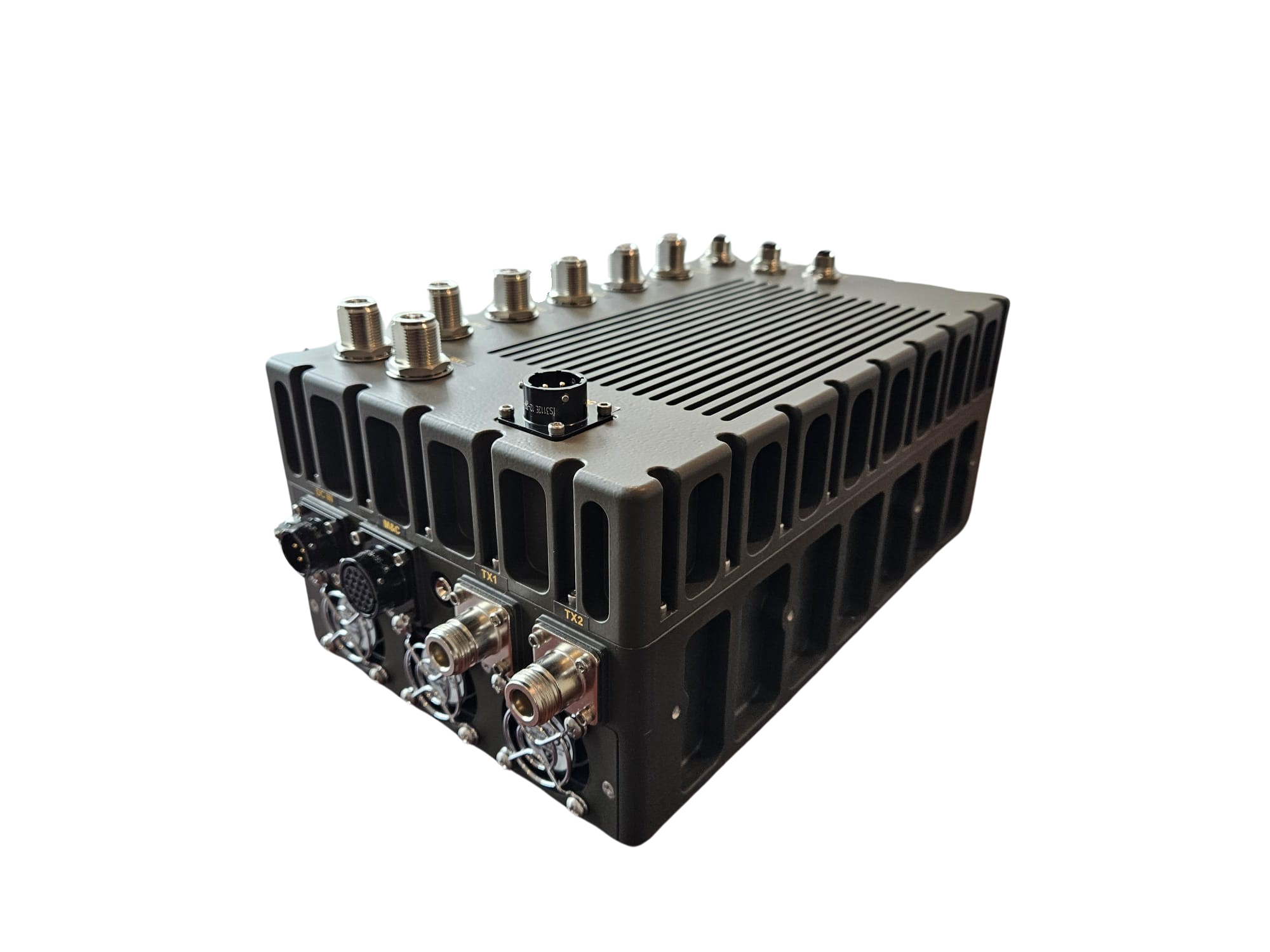

20W Man-pack Troposcatter Terminal
The Man-pack Troposcatter Terminal is a lightweight, rugged, all-in-one BLoS solution, integrating a BUC, LNB, modem, and filters. Weighing under 6kg, it delivers up to 20W output in the 4.4-5.0GHz range, ensuring reliable long-range communication for military, disaster recovery, and emergency operations. Supporting data rates of 7 Mbps over 70km and compatible with all antenna systems, its quad-diversity modem enhances performance for demanding tactical deployments.
| · Ultra Compact design and light weight for Integrated Modem-BUC solution
· Superior RF performance · Highest Dispersion Tolerance · LDPC Backwards Compatible · Wide dynamic range of Gain Control · High Linearity · Configuration via RS-232 serial console, packet protocol RS-485—User friendly HTTP based GUI and SNMP · Redundant Ready– No External Redundancy Controller Required |
· Status LED
· Field Upgradable Software · Integrated Terminal is ready to work in space diversity mode · 2 x TX outputs and 4 x RX inputs · Extensive M&C capability · Ethernet: embedded Web browser (HTTP) · SNMPv3 support · Auto Uplink Power Control · Adaptive and ACM Control · DVBS2X
|
Applications of Troposcatter
Troposcatter systems are used in battlefield communications and forward operating base connectivity – enabling real-time intelligence sharing and logistics support in hostile environments.
Troposcatter bypasses damaged infrastructure to create rapid communication networks, helping emergency responders to coordinate efforts in areas with disrupted communications.
Troposcatter establishes communication links over hundreds of kilometres without intermediate relay stations. Enables real-time data transmission for leak detection and operational efficiency.
Troposcatter provides reliable communication where traditional infrastructure is impractical. Supports critical operations in challenging environmental conditions.
We support customers in over 130 countries, with over 40 years of experience in design and manufacturing.
1/3
Engineered for Reliable RF Performance
Every RF environment is unique. Our expert engineers design and manufacture systems tailored to your specifications — ensuring unmatched scalability, reliability, and performance.
