A comprehensive range of RF switch matrices for seamless signal management and optimal performance.

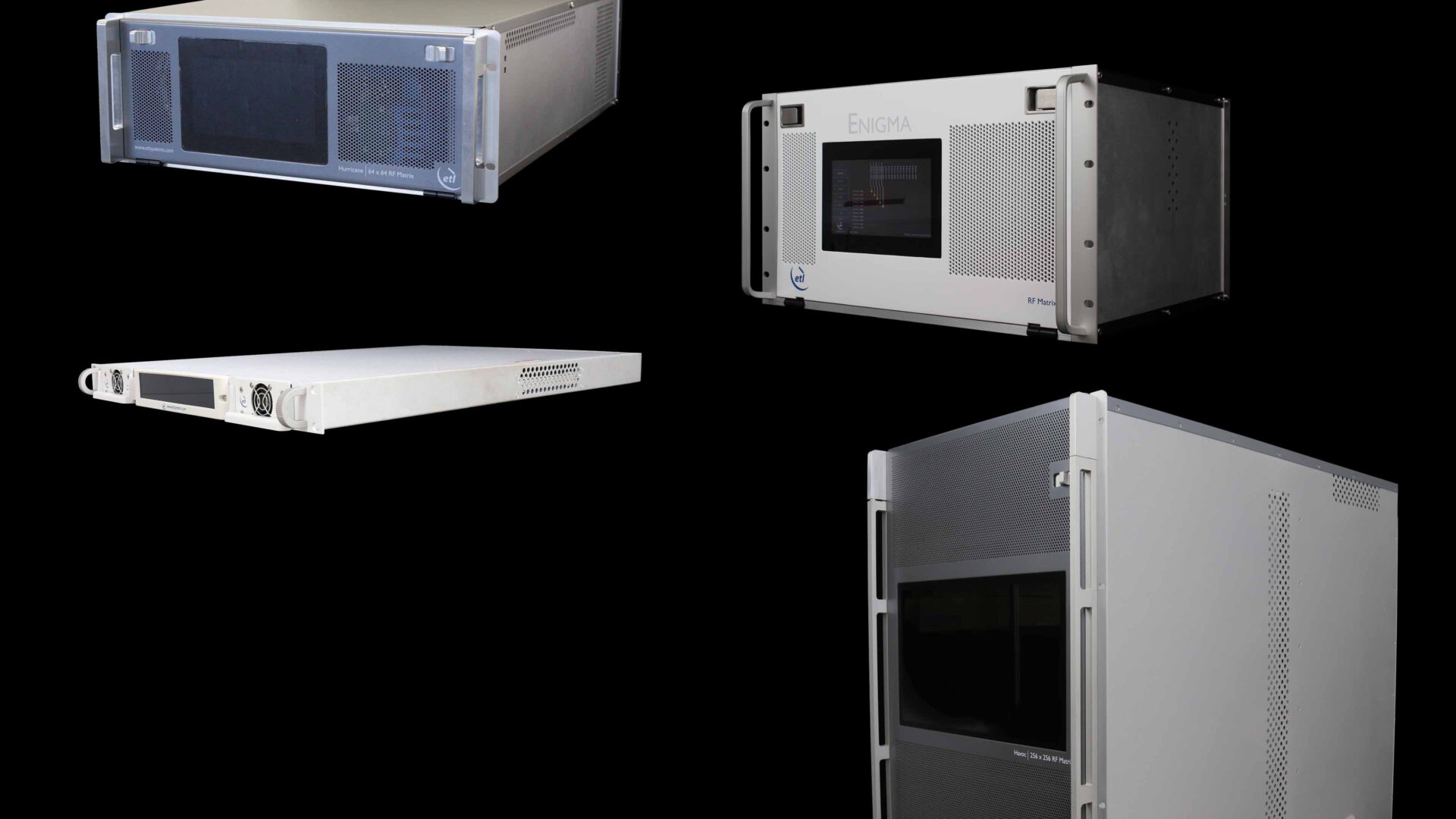

Switch Matrices

Switch matrices for every application, from 4x4 to 256x256 and beyond

ETL Systems offers an extensive range of RF routers, providing robust RF signal distribution solutions for satellite communications. Whether you need distributive fan-out or combining fan-in configurations, our products are designed to meet diverse operational needs with precision and reliability.

With ETL’s unmatched selection and advanced technology, you can achieve optimal performance and efficient signal management in your satellite communication networks.

Wide frequency coverage

Including IF, L and Ka-band ready options.

Flexible configurations

Capacity from 4×4 to 256×256 and beyond with multi-module systems. Configurable input/output options including direct fibre input/output (range dependent).

Secure communications

Equipped with the latest secure comms protocols, including HTTPS and SNMPv3.

Models

RF Switch Matrices

Ready to make a purchase or explore your options? Speak with our team today to receive expert advice, tailored recommendations, and clear next steps.

Contact

Model Number	Frequency	Routing	Capacity	Fibre Input/Output
HWK-G1S-15-D44	500-3150 MHz	Distributive	4 x 4	No
HWK-G1S-15-C44	500-3150 MHz	Combining	4 x 4	No
HWK-G1S-15-F44	500-2850 MHz	FIFO	4 x 4	No

Model Number	Frequency	Routing	Capacity	Fibre Input/Output
HWK-G1S-10	500-2450 MHz	Distributive, Combining or FIFO	Dual 8 x 8	No
HWK-G1S-11	500-2450 MHz	Distributive, Combining or FIFO	Dual 8 x 8	No
HWK-G2S-21-D832	500 - 2450 MHz	Distributive	8 x 32	No
HWK-G2S-21-C328	500 - 2450 MHz	Combining	32 x 8	No
VTR-100-0824	850-2450 MHz	Distributive	8 x 24	No
VTR-101-1616	850-2450 MHz	Distributive	16 x 16	No
VTR-102-1616	850-2450 MHz	Distributive	16 x 16	No
VTR-171-XXXX-1616	50-2500 MHz	Distributive	16 x 16	No
VTR-180-XXXX-1616	50-2500 MHz	Distributive	16 x 16	No
VTRC-100-2408	850-2450 MHz	Combining	24 x 8	No
VTRC-101-1616	850-2450 MHz	Combining	16 x 16	No
VTRC-102-1616	850-2450 MHz	Combining	16 x 16	No
VTRC-171-XXXX-1616	50-2500 MHz	Combining	16 x 16	No

Model Number	Frequency	Routing	Capacity	Fibre input/output
NGM-101	850-2150 MHz	Distributive	32 x 32	No
NGM-102	850-2450 MHz	Distributive	32 x 32	No
NGM-103	500-3150 MHz	Distributive	32 x 32	No
NGM-105	50-2450 MHz	Distributive	32 x 32	No
NGMC-101	850-2150 MHz	Combining	32 x 32	No
NGMC-102	850-2450 MHz	Combining	32 x 32	No
NGMC-103	500-3150 MHz	Combining	32 x 32	No
NGMC-105	50-2450MHz	Combining	32 x 32	No
NSN-102	850-2450 MHz	FIFO	32 x 32	No
NSN-103	500-3150 MHz	FIFO	32 x 32	No
HUR-10	850-2450 MHz	Distributive	64 x 64	Yes
VTX-100	850-2450 MHz	Distributive	64 x 64	No
VTXC-100	850-2450 MHz	Combining	64 x 64	No
VTX-101	850-2150 MHz	Combining	64 x 64	No

Model Number	Frequency	Routing	Capacity	Fibre Input/Output	Datasheet
HAR-40	850-2450 MHz	Distributive	128 x 128	Yes
HAV-80	850-2450 MHz	Distributive	256 x 256	No

Reliable, resilient RF routing for every application

Range

Options for distributive fan-out, combining fan-in, and FIFO matrices, ensuring reliable and efficient signal management across uplink and downlink applications.
Balance flexible routing options with minimising signal paths to reduce insertion loss and signal degradation.
High-density configurations, excellent isolation, and low insertion loss.
RF router range includes fully hot-swappable components, such as RF cards, CPUs, and PSUs, ensuring easy maintenance and future expandability.
For larger applications, scalable multi-module systems can handle up to 1024 inputs x 1024 outputs.

Configuration

Specialist features for all applications; fibre input/output, LNB powering, variable gain, low noise and more. We can specify the matrix that your system needs.
Software expansion available; buy expansion-ready matrices to balance future-proofing and cost efficiency.
Options for combining, distributive, dual/combination, or FIFO configurations.

Reliability

Local and remote M&C capabilities.
Parts redundancy to protect against failure, including PSUs and CPUs
Resilient by design; isolated RF cards only affect single input/output port in event of failure (product dependent), automated switching in event of signal path failure (product dependent).

Medium sized satellite ground station with multiple antennas against a blue sky

Testimonials

We have supported customers in over 130 countries around the globe.

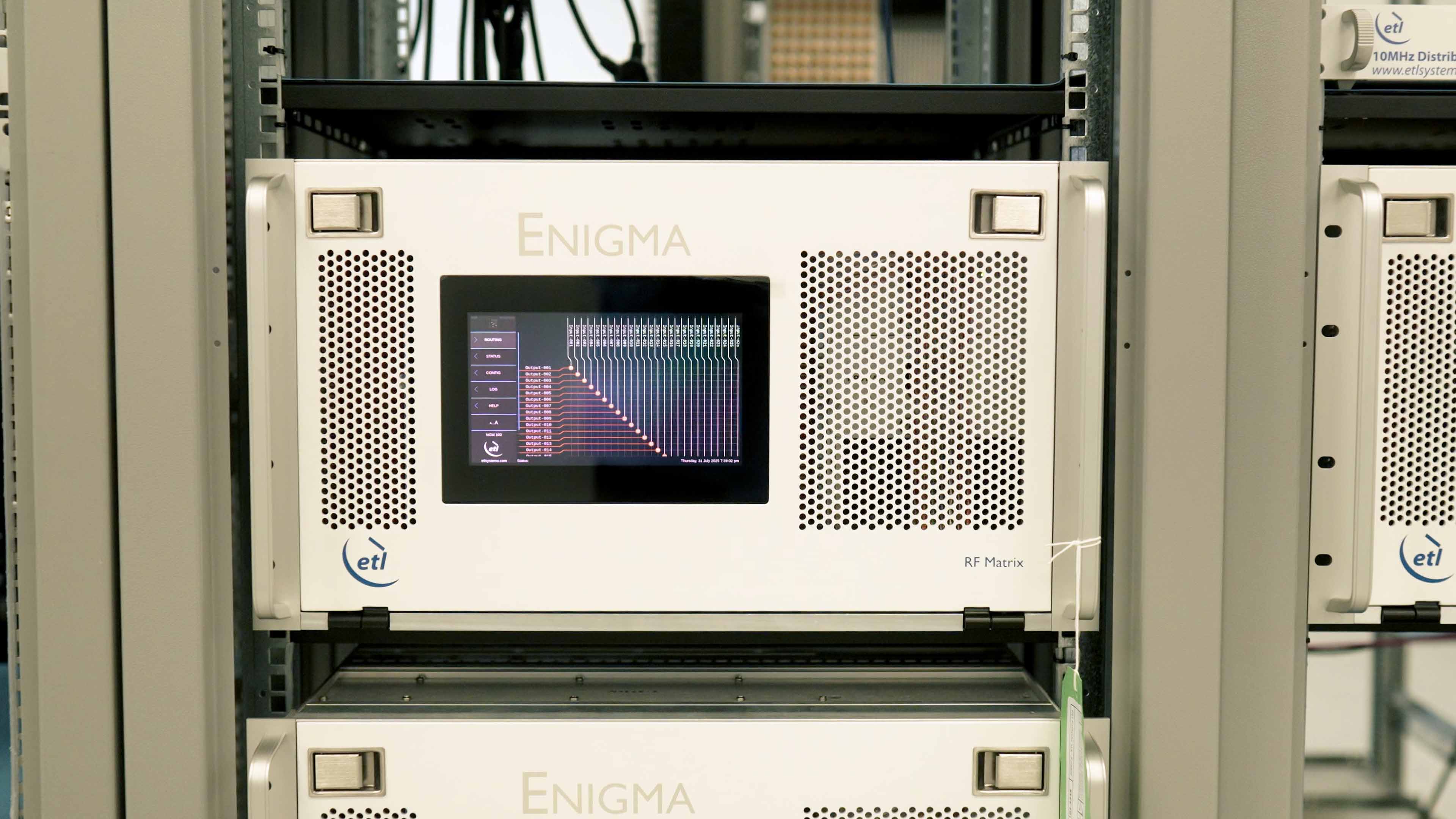

“Being responsible for the design and engineering of our entire headend for live TV services, I can confidently say that ETL equipment is at the core of our operations. We've been using ETL's Enigma, originally purchased as a 64x256, delivered Christmas Eve 2007, and it’s still running perfectly. The durability of ETL is remarkable—you simply can’t break it. It’s so reliable that we haven't seen many new customers switching to ETL because their old equipment is still going strong after all these years.”

Koen Deleener

Head of Engineering, VRT

“We’ve been working with ETL since around 2005, and over the years, we've collaborated on numerous projects. One that stands out was for RTL in Belgium, where we installed the Matrix, Enigma. What sets ETL apart is their exceptional RF specifications. The equipment we installed back in 2006-2007, like the matrix at RTL, is still running smoothly. The same goes for all our other clients. Issues are rare, but when they arise, ETL’s support is always reliable. This is why clients continue to trust and return to ETL time and time again.”

Rob Vermeiren

Product Manager, Diginet

1/2

Engineered for reliable RF performance

Every RF environment is unique. Our expert engineers design and manufacture systems tailored to your specifications — ensuring unmatched scalability, reliability, and performance.

ETL in Action

Render of high throughput satellite in space with globe behind

News

RF Matrix/Routers for LEO Ground Stations

Case Studies

Victor RF Matrix Chosen for Maritime Project with Speedcast

Case Studies

Advanced Communication Solutions for a High-Stakes Environment

Advanced Communication Solutions for a High-Stakes Environment

Matrix Systems

Switch matrices for every application, from 4x4 to 256x256 and beyond

Wide frequency coverage

Flexible configurations

Secure communications

RF Switch Matrices

Related products

GENUS 1U modular chassis

GENUS modular ODU

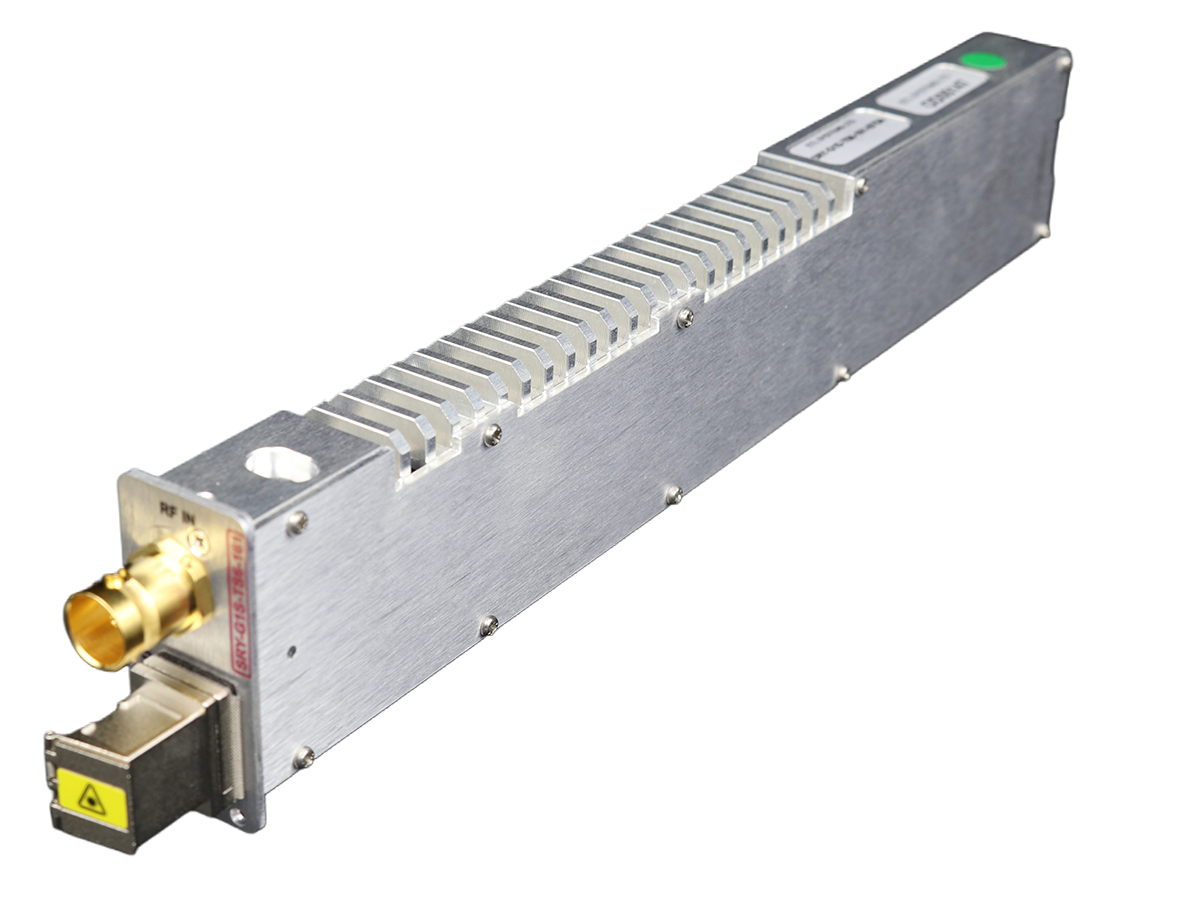

STINGRAY RF over Fibre L-band Tx module

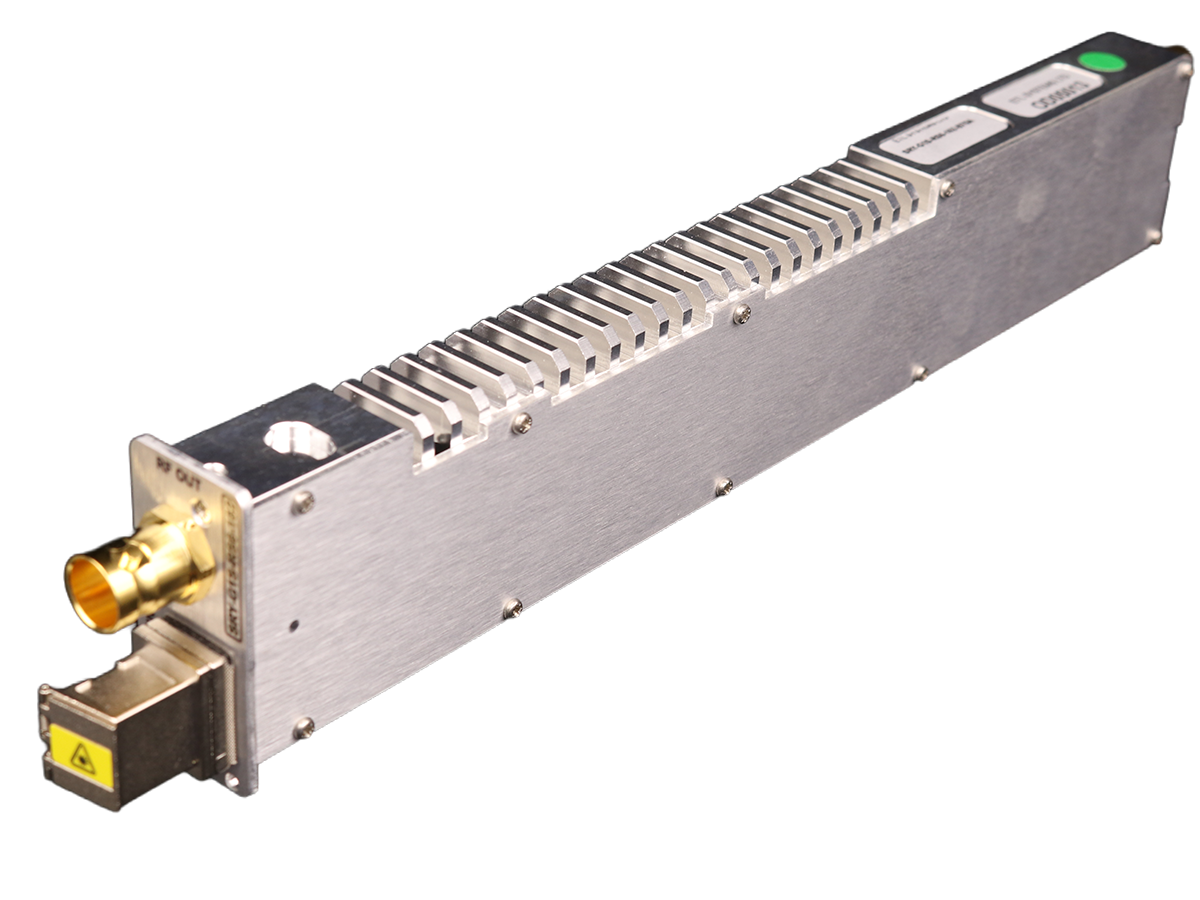

STINGRAY RF over Fibre L-band Rx module
