Digital IF

DIGITAL 1000

Digital IF

DIGITAL 1000 is ETL's revolutionary digitisation module, bringing all the benefits of RF over IP transport out to the network edge

Make an enquiry View Datasheets
DIGITAL 1000 - ODU

Ruggedised, compact form factor

ETL’s rack-mount GENUS DIGITAL 5000 unit demonstrated the performance potential of RF-over-IP over 100 GbE. However, the required infrastructure is rarely available in tactical or mobile applications. DIGITAL 1000 takes this cutting-edge capability and repackages it into a ruggedised, modular form factor. The unit is optimised for field deployment and can operate across a variety of COTS compute platforms.

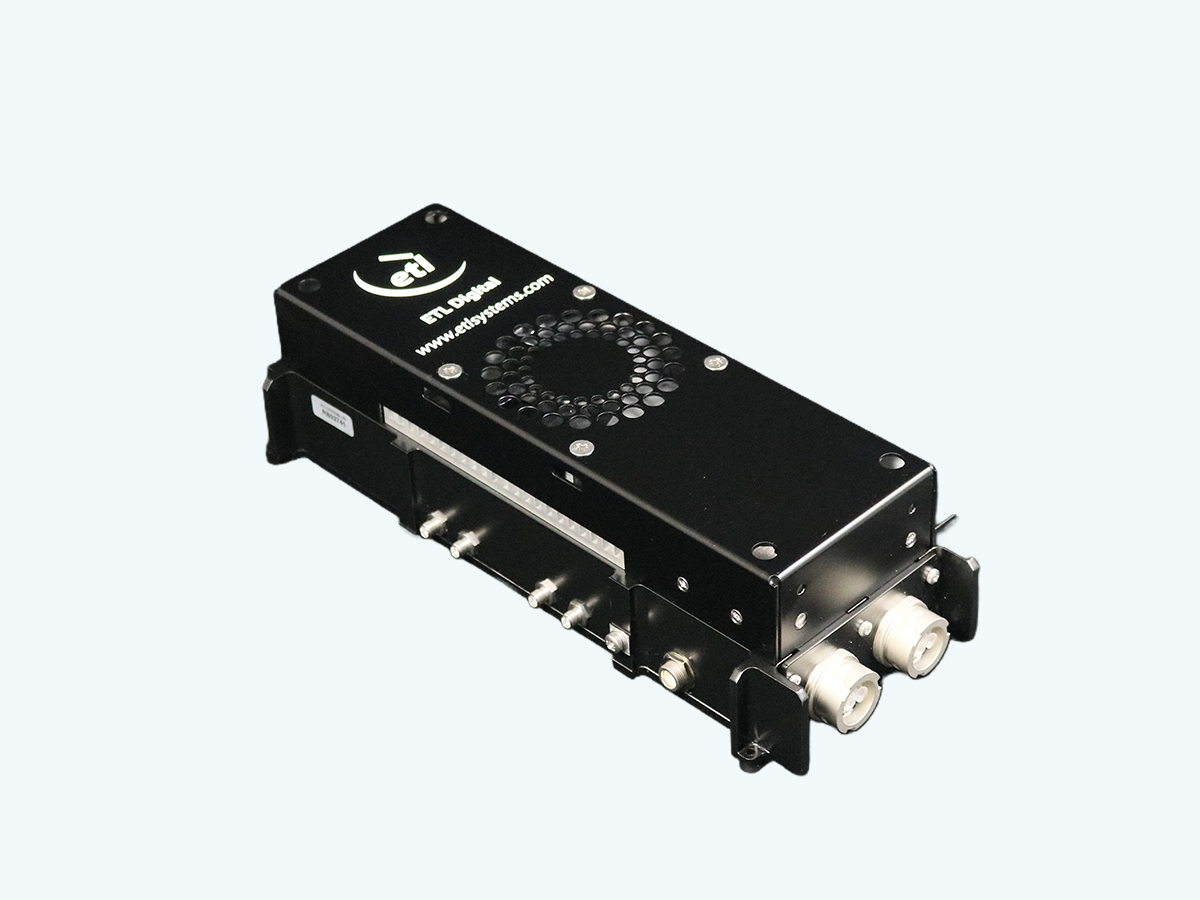

View of the DIGITAL 1000 ODU product
DIGITAL 1000 - IDU

Embeddable module

ETL’s DIGITAL 1000 IDU module is designed for the ultimate flexibility, ready for integration into your OEM solution. Able to fit into a 1U chassis, the DIGITAL 1000 IDU unlocks versatile RF digitisation capability wherever you need it.

DIGITAL 1000 IDU product photo
Models

DIGITAL 1000

Not sure what you need for your application? Speak with our dedicated team to receive tailored advice.

Get in touch
Model Number Frequency Range Instantaneous Bandwidth ADC Sample Depth DAC Sample Depth Data Protocol Datasheet
DI-EDM-S2-1602 850 - 2450 MHz 125 MHz 8 bits per I or Q sample 16 bits per I or Q sample IEEE-ISTO Std 4900-2021 (DIFI) Information Class 0x0000, 0x0002, 0x0003, 0x0004
DI-EDM-S2-1702 850 - 2450 MHz 500 MHz 8 bits per I or Q sample (Upgradeable to 12 bits) 16 bits per I or Q sample IEEE-ISTO Std 4900-2021 (DIFI) Information Class 0x0000, 0x0002, 0x0003, 0x0004
DI-EDM-S2-1601 850 - 2450 MHz 125 MHz 8 - 12 bits per I or Q sample 16 bits per I or Q sample IEEE-ISTO Std 4900-2021 (DIFI) Information Class 0x0000, 0x0002, 0x0003, 0x0004
DI-EDM-S2-1701 850 - 2450 MHz 500 MHz 8 - 12 bits per I or Q sample 16 bits per I or Q sample IEEE-ISTO Std 4900-2021 (DIFI) Information Class 0x0000, 0x0002, 0x0003, 0x0004
Render of globe from outer space with glowing blue satellite network lacing

Specifying an Edge Digitiser

Specifying an edge unit comes with challenges. For example, a digitiser supporting a cellular backhaul will require significantly more bandwidth (both in terms of RF bandwidth and terrestrial network bandwidth) than one supporting just a single user. Get in touch with our team to discuss your requirements and get tailored advice on the best solution.

Contact
DIGITAL 1000

The Benefits of Edge Digitisation

DIGITAL IF

DIGITAL 1000

DIGITAL 1000 bridges the gap between traditional RF and the near-future virtualised ground segment, even at the network edge. By digitising RF into IP streams, operators unlock:

• Elastic scaling – Modem instances can be spun up or down based on traffic demand, mission profile, or service-level requirements.
• Rapid waveform updates – New features, standards, or optimisations can be deployed through software updates rather than hardware refresh cycles.
• Resource pooling – Compute resources can be shared across multiple missions or customers, improving utilisation and reducing cost.
• Geographical flexibility – Processing can be moved closer to the user, closer to the gateway, or centralised for efficiency, depending on operational needs.
