Solid-state power amplifiers
Unprecedented reliability and linearity for the satcom industry
IRT SSPAs
Designed for mission-critical SATCOM applications
IRT solid-state power amplifiers (SSPA) offer unmatched reliability and linearity for SATCOM and military applications. Powered by advanced GaN technology, they deliver superior power density, efficiency, and up to 10x more output than GaAs HEMT, withstanding extreme conditions.
Equipped with SNMPv3 cybersecurity, IRT SSPAs ensure secure communications with authentication, encryption, and access control. Trusted by system vendors worldwide, our SSPA set the standard for high-performance, mission-critical amplification.
Flexible housing
High RF performance
Latest generation using SNMPv3
Key features
GaN Technology
• Solves the primary issues with High-Power Amplifier (HPA) technology: power density and power efficiency.
• New generation GaN technology exceeds the capabilities of traditional GaAs amplifiers, enabling them to reach the highest available power level with the best linearity on market.
• Can withstand 200°C junction temperature with resitance to solar radiation.
• Up to 10X more output power per unit compared to GaAs HEMT.
Cyber Security SNMPv3
• SNMPv3 is a protocol for managing and monitoring network devices. Key security features include authentication, privacy (encryption), and access control.
• “User-based” administration, allowing for more granular control over who can ensures data confidentiality.
• Prevents unauthorised access and ports authentication and encryption : SNMPv3 data cannot be read after capture. Only authorised users can access specific object identifiers.
Solid-state amplifiers (SSPA)
Outdoor SSPA product range
Increasingly powerful outdoor SSPAs are steadily replacing indoor TWTAs, enabling service providers to eliminate long waveguide runs by installing high-power amplifiers closer to the antenna. The solid-state amplifier’s compact size and power capacity makes it ideal for operators to free-up valuable indoor rack space. Applications include mobile broadcast, DSNG, VSAT, and fixed medium-large earth stations.
- C-Band options from 20-2500W output power (Psat)
- X-Band options from 16-500W output power (Psat)
- Ku-Band options from 2-500W output power (Psat)
- Ka-Band options from 20-40W output power (Psat)
- Compact, lightweight and efficient design
- Low power consumption
- Forward/reverse power direction
- Input power detection
- Intuitive monitoring and control via RS232/RS485 and Ethernet (SNMP &HTTP)
- Automatic fault identification & alarm generation
- Temperature compensation facility
- Built-in redundancy facility
- 10MHz reference with auto-detection
- Built-in receive reject filter
- Sample port for output monitoring
- Optional Antenna Mounting Kit
- Block Up Converter (BUC) option available
- Wide operating temperature range
Name & Datasheet | Frequency (GHz) | Output Power (Psat) | Input | Size (mm) | Weight | Model No. |

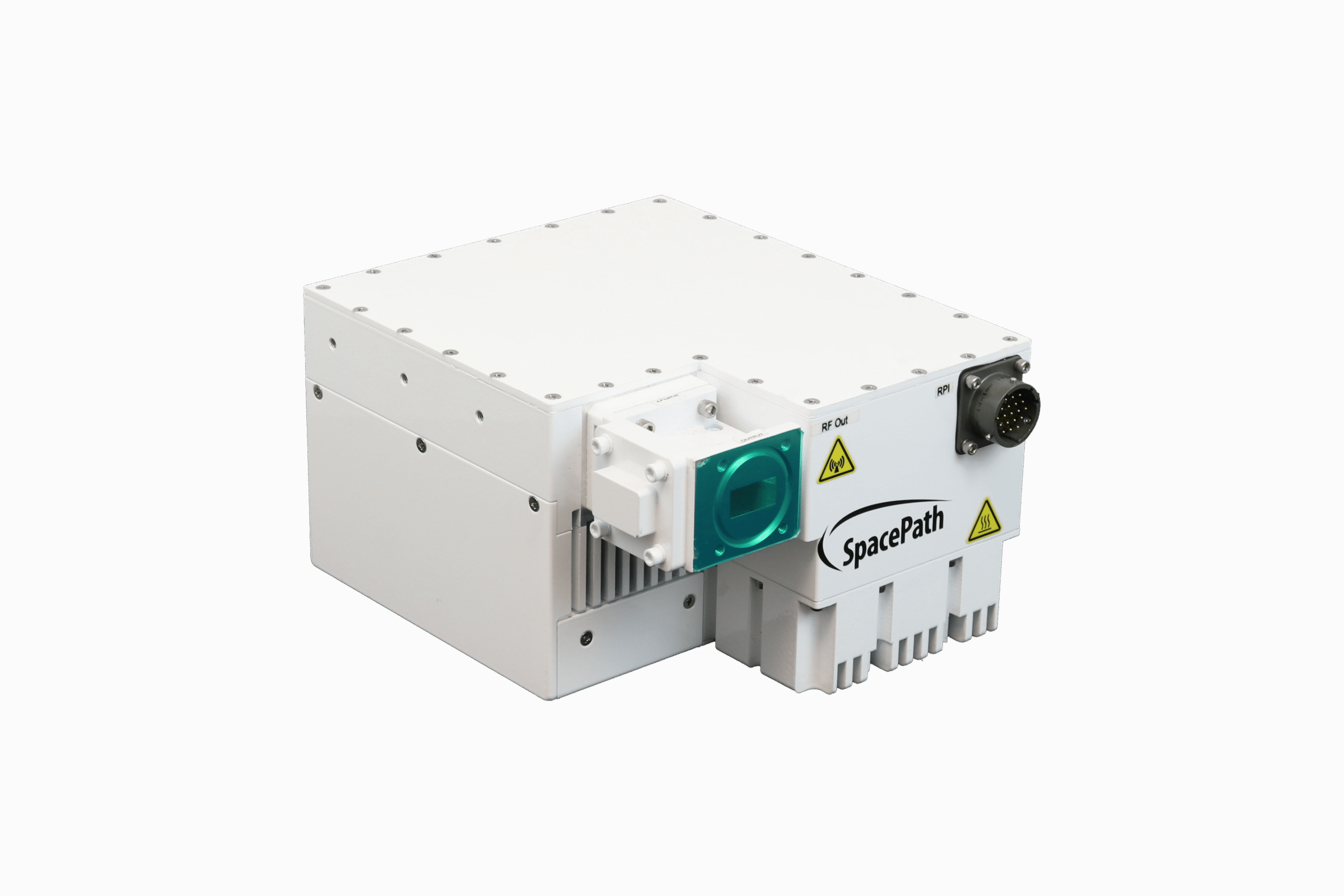

5.85-6.425 5.85-6.725 6.425-6.725 6.725-7.025 | 20W, 40W, 60W, 80W, 100W, 120W | 950-1525MHz / 950-1825MHz | 152H x 152L x 106W | 2.7kg | STS20-120C | |
5.85-6.425 5.85-6.725 6.425-6.725 6.725-7.025 | 150W, 200W, 250W | 950-1525MHz / 950-1825MHz | 400W x 230H x 130L | 12kg | STS150-250C | |
5.85-6.425 5.85-6.725 6.425-6.725 6.725-7.025 | 300W, 400W, 500W | 950-1525MHz / 950-1825MHz | 470H x 340L x 250W | 30kg | STS300-500C | |
5.85-6.425 5.85-6.725 6.425-6.725 6.725-7.025 | 800W, 1000W | 950-1525MHz | 610L x 510Wx 320H | 60kg | STS800-1000C | |

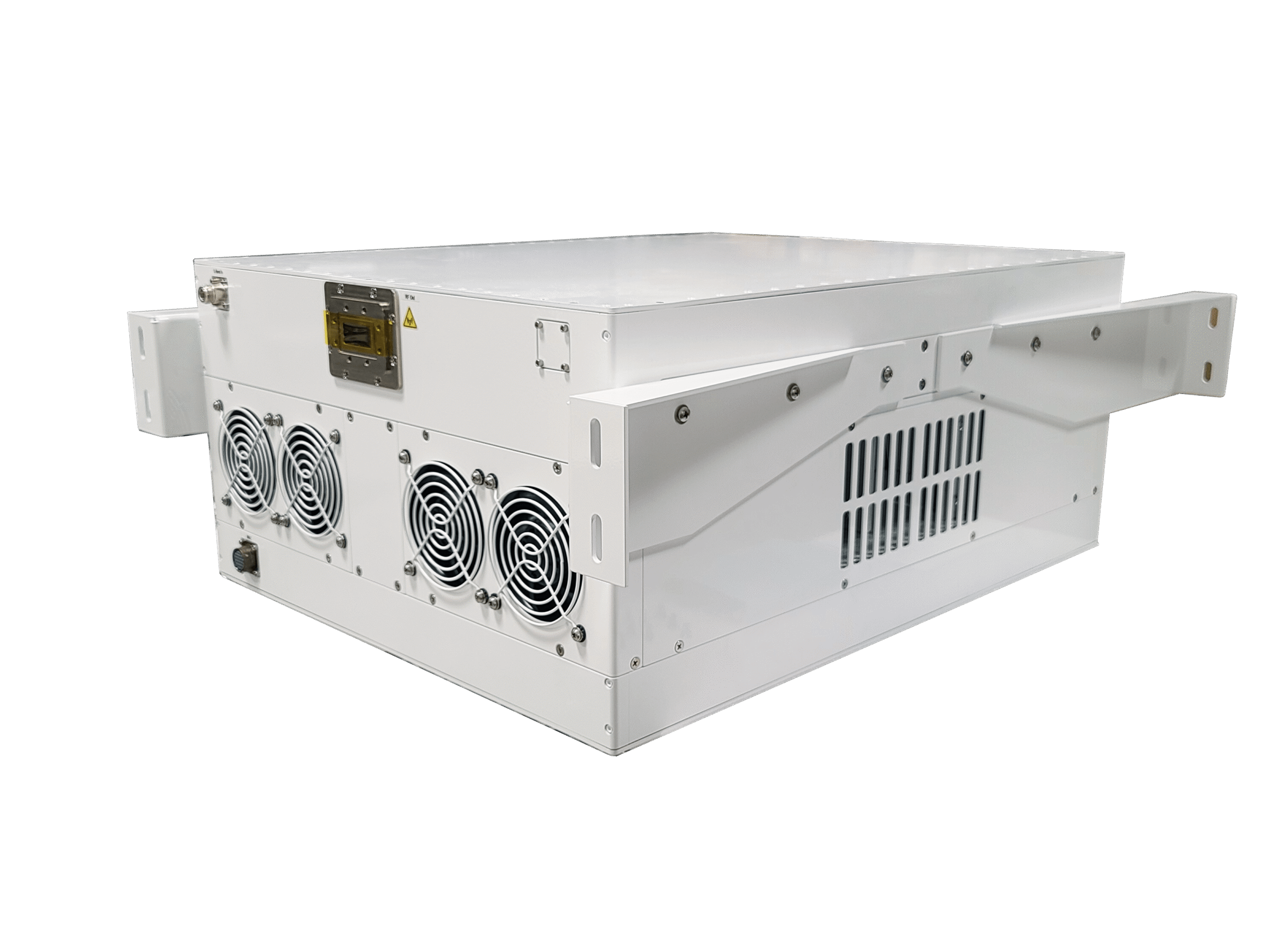

5.85-6.425 5.85-6.725 6.425-6.725 6.725-7.025 | 1200W, 1500W | 950-1525MHz | 610L x 510W x 320H | 60kg | STS1200-1500C | |
5.85-6.425 5.85-6.725 6.425-6.725 6.725-7.025 | 2500W | 950-1525MHz | 610L x 510W x 320H | 100kg | STS2500C |
Name & Datasheet | Frequency (GHz) | Output Power (Psat) | Input | Size (mm) | Weight | Model No. |
7.9 – 8.4 | 16W, 20W, 40W, 80W, 100W | 950 – 1525MHz | 115H x 165L x 165W | 2.5kg | STS16-100X | |
7.9 – 8.4 | 300W, 400W, 500W | 470H x 343L x 254W | 25kg | IRT-OSSPA-300-500X |
Name & Datasheet | Frequency (GHz) | Output Power (Psat) | Input | Size (mm) | Weight | Model No. |
14.00 – 14.5 13.75 – 14.5 | 16W (P1dB) / 20W (P1dB) / 25W (P1dB) | 950 – 1450MHz / 950 – 1700MHz | 165H x 165L x 95W | 2.5kg | STS16-25K | |
13.75 – 14.5 | 8W, 12W, 16W | 950 – 1700MHz | 145H x 135L x 100W | 2.75kg | STS8-16KUFL | |
14.00-14.50 13.75-14.50 | 40W, 50W, 60W | 950-1450MHz 950-1700MHz | 165H x 165L x 94W | 2.5kg | STS40-60K | |
14.00-14.50 13.75-14.50 12.75-13.25 | 20W, 40W, 50W, 65W | 950-1450MHz 950-1700MHz | 95H x 150L x 140W | 2kg | STS20-65K | |
14.00-14.50 13.75-14.50 | 80W, 100W, 125W | 950-1450MHz 950-1700MHz | 345H x 215L x 100W | 8kg | STS80-125K | |
14.0 – 14.5 13.75 – 14.5 | 150W, 200W | 950 – 1450MHz 950 – 1700MHz | 390H x 225L x 110W 470H x 225L x 110W (with output circulator) | 12kg | STS150-200K | |
14.00-14.50 13.75-14.50 12.75-13.25 | 100W | 950-1450MHz 950-1700MHz | 105H x 190L x 167W | 4.5kg | STS100K | |
14.0 – 14.5 13.75 – 14.5 | 250W, 300W, 400W, 500W | 950 – 1450MHz 950 – 1700MHz | 480H x 290L x 242W | 34kg | STS250-500K |
Name & Datasheet | Frequency (GHz) | Output Power (Psat) | Input | Size | Weight | Model No. |
27-31GHz | 20W, 40W | 950-1950MHz | 23×13.75x10cms / 28.5×27.25x11cms | 5.5KG 12.75KG | STS20-40Ka |
Indoor SSPA product range
Our indoor SSPAs are increasingly being adopted in satellite uplink systems as alternatives to traditional TWTAs due to their extremely compact, lightweight and efficient design. The SSPAs utilise either GaN (gallium nitride) or GaAS (gallium arsenide) technology.
- Low power consumption
- Forward/reverse power direction
- Input power detection
- Intuitive monitoring and control via RS232/RS485 and Ethernet (SNMP &HTTP)
- Automatic fault identification & alarm generation
- Temperature compensation facility
- Built-in redundancy facility
- 10MHz reference with auto-detection
- Built-in receive reject filter
- Sample port for output monitoring
- AC/DC power supply options
- Wide operating temperature range
Name & Datasheet | Frequency (GHz) | Output Power (Psat) | Input | Size (RU) | Model No. |
5.85-6.425 | 100W, 200W, 250W, 300W, 400W, 800W | 3RU – 6RU | STSR C | ||
5.85-6.425 | 10W | 2RU | STSR 10C | ||
5.85-6.425 | 20W | 2RU | STSR 20C | ||
5.85-6.425 | 400W, 500W, 600W | 5RU | STSR400-600C | ||
5.85-6.425 5.85-6.725 | 1800W | 950-1525MHz 950-1825MHz | 10RU | STSR 1800C |
Name & Datasheet | Frequency (GHz) | Output Power (Psat) | Input | Size (RU) | Model No. |
13.75-14.50 14-14.50 | 50W, 100W, 125W, 200W, 250W, 300W, 400W, 500W | 950-1700MHz | 2RU – 5RU | STSR K | |
13.75-14.50 14-14.5 | 2000W | 950-1700MHz | 8RU | STSR 2000K |
Redundancy Solutions
Redundancy Systems
Redundant system controllers for uninterrupted satellite communication links. Our revolutionary compact and lightweight design ensures simplicity and reliability, making deployment effortless.
With BUC/SSPA embedded redundancy protection, our solution guarantees uninterrupted performance, even in the most demanding environments.
- Redundancy Solutions without external Controller
- 1:1 / 1:2 BUC / SSPA IDU / ODU
- Compact and Lightweight
- Mounting hardware
- Web – based remote Graphical User Interface (GUI)
- Control cables
- RS-232, RS-485, Ethernet Interface
- Power distribution junction box
- Internal and Autosence 10MHz reference options
- Indoor 1RU remote control unit option
Learn more about this product range
Get in touch with our sales team to learn how our RF and Digital IF products could work for you.
FAQs
TWTAs use vacuum tube technology to amplify RF signals, providing high power, wide bandwidth, and efficiency at high frequencies. In contrast, SSPAs use semiconductor transistors, offering better reliability, compact size, and lower maintenance costs but generally lower power output.
IRT SSPAs can operate a wide frequency range, and can be used in various bands.
Unlike travelling wave tube amplifiers (TWTAs) which are sensitive to environmental conditions, our SSPAs can operate in the harshest conditions.
Our SSPAs are used for and not limited to VSAT, mobile satellite, and tactical communication systems.
Yes, in some systems, TWTAs and SSPAs can be combined to take advantage of the strengths of both technologies. For example, SSPAs may be used for lower power applications, while TWTAs handle high-power amplification.
